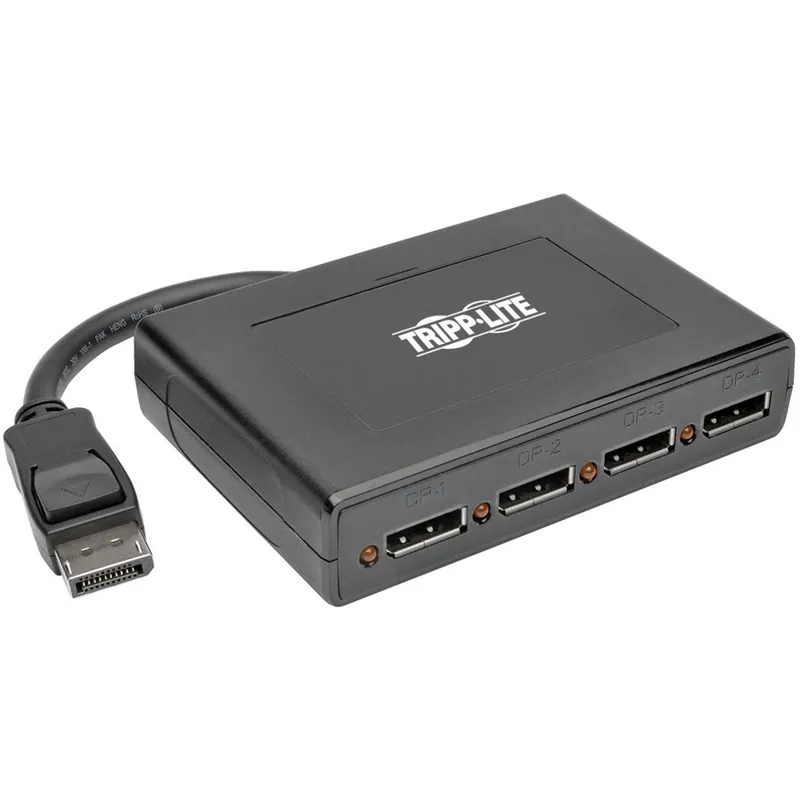

Eaton B156-004-V2 – 4PT DP1.2 4K SPLTR/MST HUB

Trionics Distributor of Tripp Lite By Eaton,

MPN: B156-004-V2

Tech SpecsSpecifications

Manufacturer Part Number

 B156-004-V2

Brand Name

 Tripp Lite

Product Model

 B156-004-V2

Product Name

 4-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub,3840 x 2160(4K x 2K) UHD

Marketing Information

 The B156-004-V2 4-Port DisplayPort 1.2 MST Hub connects up to four DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.The B156-004-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-004-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

  • Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
  • MST-compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface of your graphics card. If the total percentage of bandwidth taken up by all the connected monitors exceeds 100%, an image will not display on one or more of them.

System Requirements

  • Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode.
  • Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
  • Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on connected monitors to mirror mode.
  • MST-compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface of your graphics card. If the total percentage of bandwidth taken up by all the connected monitors exceeds 100%, an image will not display on one or more of them.
  • Monitor(s) with DisplayPort input.

Product Type

 Signal Splitter

Video

Maximum Video Resolution

 3840 — 2160

Interfaces/Ports

DisplayPort

 Yes

Number of DisplayPort Inputs

 1

Number of DisplayPort Outputs

 4

Power Description

Input Voltage

 5 V DC

Physical Characteristics

Height

 0.9″

Width

 4.3″

Depth

 3″

Weight (Approximate)

 4.94 oz

Miscellaneous

Package Contents
  • 4-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub,3840 x 2160(4K x 2K) UHD
  • External Power Supply with NEMA 1-15P Plug and 5 ft.Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
  • Owner’s Manual

Environmentally Friendly

 Yes

Environmental Certification
  • RoHS
  • REACH

Country of Origin

 Taiwan

TAA Compliant

 Yes

Warranty

Limited Warranty

 3 Year
